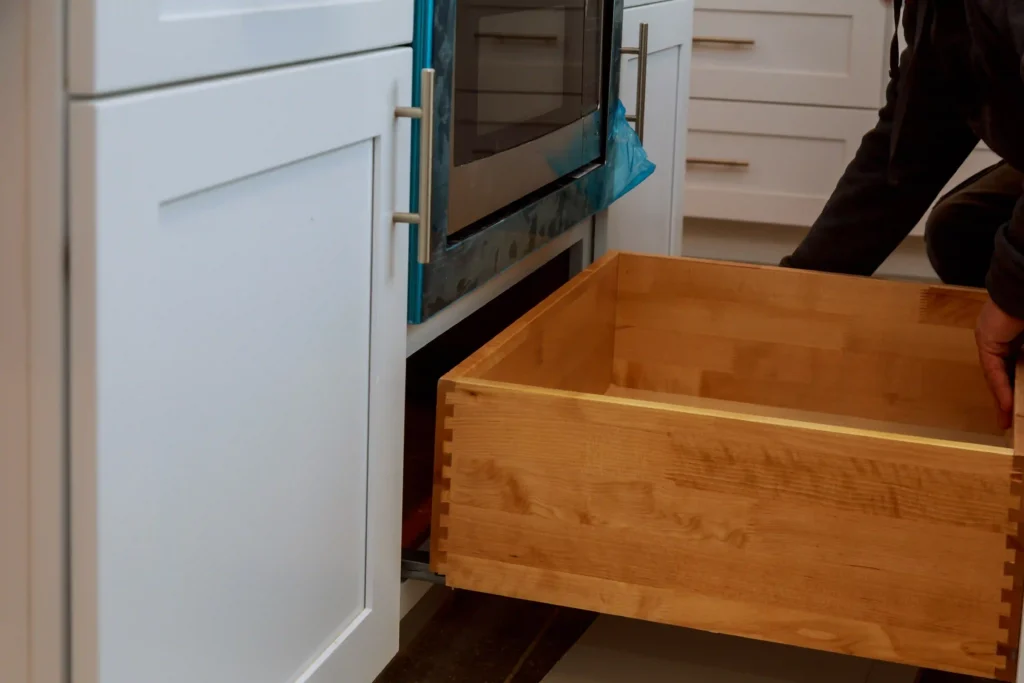

Dovetail Drawer Boxes
Drawer boxes are where fit is most visible and least forgiving. Box height, groove placement, and joint quality determine whether a drawer runs true on the slide and whether the finished front sits flush in the cabinet. South Creek Supply produces dovetail drawer boxes to your box schedule, matching the slide system, bottom thickness, and front attachment method already used in your production program.
OVERVIEW
Built for the Fit You See Every Day.
The box is built around your system, not the other way around.
Box height, groove placement, and joint quality all affect how a drawer runs on the slide and how the finished front sits within the cabinet. South Creek Supply produces dovetail drawer boxes to your box schedule, matching the slide system, bottom thickness, and front attachment method already used in your production program.
Drawer boxes are where fit is most visible and least forgiving.
TECHNICAL SPECIFICATIONS
Built to Your Print
Construction options
- Machined dovetail joinery at all four corners
- Solid hardwood or plywood sides depending on grade, finish, and target cost
- Captured bottom panel installed in a machined groove
- Bottom groove sized to the specified panel thickness, commonly 2.75mm through 3.10mm for a 3mm nominal panel
- Groove placement set to the slide system in use, commonly 1/2 inch up from the bottom edge
- Front attachment boring produced to your specified method and pattern
Typical dimensional range
- Side thickness commonly 5/8 inch, other thicknesses to specification
- Box heights typically 2 3/8 inches through 10 3/8 inches, and to specification beyond that range
- Box widths and depths built directly to your drawer schedule
- Undermount, side mount, and soft close slide systems accommodated
Machining
- Dovetail pin and socket machining
- Bottom panel grooving
- Front attachment boring, typically 3/8 inch diameter, to specified pattern and spacing
- Notching and relief cuts for slide hardware and clips
- Scoop fronts, radius work, and applied detail on request
Typical tolerances
- General dimensional tolerance of plus or minus 1/32 inch
- Joint fit confirmed against approved samples before production release
- Groove placement confirmed against approved samples before production release
- Tighter tolerances quoted where the application requires them Tighter tolerances quoted where the application requires them
Applications
- Cabinet manufacturers, custom and semi-custom cabinetry, furniture manufacturers, manufactured and modular housing producers, bath and vanity manufacturers.
APPLICATIONS
Who Buys This Component
Built for cabinet and furniture manufacturers needing consistent joinery, precise dimensions, and hardware compatibility.
Cabinet Manufacturers
Custom & Semi-Custom Cabinetry
Furniture Manufacturers
Modular & Production Housing
Dovetail Drawer Boxes : Specification Sheet
PRODUCT FAQ
Frequently Asked Questions
01 What information do you need to quote dovetail drawer boxes?
To provide an accurate quote, we need your drawer box specifications, including dimensions, material requirements, construction details, quantity, and any existing specifications or samples you would like us to match. You can also upload drawings, specifications, or samples through our pricing request process.
02What type of joinery is used?
Our dovetail drawer boxes are manufactured using dovetail construction, designed to provide a strong, consistent, production-ready drawer box solution for high-volume manufacturers.
03What materials are available?
South Creek Supply provides hardwood components sourced through a diversified manufacturing network, including suppliers in Thailand, Vietnam, Europe, and other regions. Material availability can be matched to your existing product specifications and approved before full production.
04What bottom panel thicknesses can you accommodate?
Bottom panel requirements can be matched to your existing specifications. Send us your current drawer box specifications or a sample, and our team can review the requirements for your production program.
05Can you build drawer boxes for my existing slide system?
Yes. South Creek Supply focuses on matching existing specifications so components can integrate into your current manufacturing process. Provide your slide-system requirements and existing specifications for review.
06Can you match our front attachment method?
Yes. We can work from your existing specifications and samples to develop a drawer box that fits your current production requirements. Our process includes spec matching and sample approval before full production.
07What box sizes are available?
Box heights are typically available from 2 3/8 inches through 10 3/8 inches, with larger heights available to specification. Box widths and depths are built directly to your drawer schedule, with undermount, side-mount, and soft-close slide systems accommodated.
08Can you provide custom machining?
Yes. Our built-to-spec approach is designed to support manufacturers who need consistent components across production runs. We can review your existing specifications, confirm the details, and provide samples for approval before full production.
